DSSSL - Document Style Semantics And Specification Language
ISO/IEC 10179:1996



Simple XML to HTML Conversion and Rendition Example

By Didier PH Martin, April 4, 1999

* Home Page
* Introduction
* The HTMLFo library
* Convert the SGML/XML document into HTML formatting object
* The root element
*  A child container element
* A container element with data
* More complex aggregates
* Inline insertion
* An other way to create inline insertion with style properties
* The complete DSSSL script

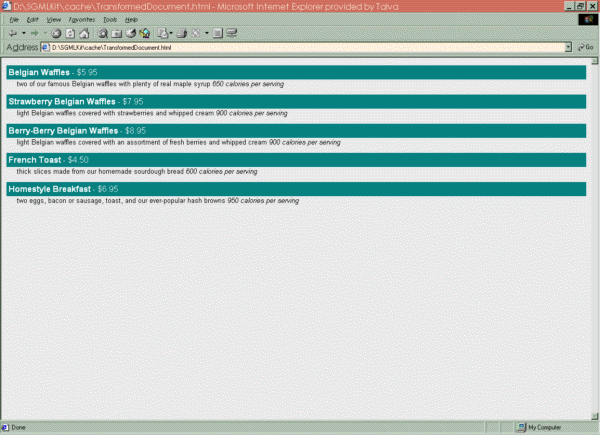

* The XML document rendered with the SGML/XML kit viewer.

Click here to see the htmlfo library

Introduction

Contrary to what you've heard, DSSSL is not necessarily a language hard to learn. Of course, mastering its most advanced features takes time but the language apprenticeship could be approached a step at a time from the simple to the complex.

In fact, DSSSL entry level could be quite simple as we will demonstrate in a simple DSSSL entry level script that transform a XML document into a HTML document that is finally rendered in a browser.

To publish a XML document that could be rendered in a browser with a DSSSL script requires that the browser includes a DSSSL script engine.

To be processed, the XML document has to be associated to a DSSSL script by including a style sheet processing instruction (see: How to link a SGML/XML document to a HTMLFO DSSSL script). The script itself converts XML/SGML elements into HTML formatting objects (see: Convert the SGML/XML document into HTML formatting object). Then finally, the HTML document is displayed in the browser.


The HTMLFo library

DSSSL specifications contain several formatting objects. Thus, objects like paragraph, display-group, sequence are basic formatting object part of the DSSSL style specifications. However, we are not constrained to only these objects. In fact, new objects could be created and packaged in libraries. Tony Graham from Mulberry Technologies created such a library for HTML. Instead of using DSSSL formatting objects in DSSSL rules, HTML formatting objects could be used instead.
DSSSL formatting objects:
(element par
   (make paragraph
      (process-children)
   )
)

HTMLFO objects:
(element par
   (make div
      (process-children)
    )
)
 The first step in the DSSSL script is to define the DOCTYPE and used libraries. This is done with a script document prolog like:

<!DOCTYPE style-sheet PUBLIC "-//Netfolder//DTD DSSSL library//EN" >
<style-specification use="htmlfo">

... DSSSL script body.....

</style-specification>
<external-specification id="htmlfo" document="htmlfo">
 In the above example, we defined the usage of an external library named htmlfo. The library creates a collection of HTML formatting objects. The library is included with the SGML/XML kit package.

How to link an SGML/XML document to a HTMLFO DSSSL Script

For XML documents, a processing instruction can be included at the beginning of the document like in the following example.
<?xml-stylesheet href="myscript.dsl" type="text/dsssl"?> or

<?xml-stylesheet href="myscript.dsl" type="text/dsssl"? media="screen"?>
 if the media property is not present in the processing instruction, it is automatically set by default to media="screen".

An SGML document including a stylesheet processing instruction is governed by the same rules as for XML documents except that the style sheet keyword is different (you can also use the same style sheet keyword for both)
<?stylesheet href="myscript.dsl" type="text/dsssl"> or

<?stylesheet href="myscript.dsl" type="text/dsssl"? media="screen">

Style sheet PI properties
Description
href a URI pointing to the DSSSL script. The Talva DSSSL script engine engine only supports URLs and so currently doesn't support URNs. URL protocol support is restricted to file and HTTP protocols.
type Indicate to the script router which script engine to load. The actual script router supports the following MIME types:
text/dsssl = DSSSL engine
text/xsl = XSL engine
text/css= CSS engine
text/omnimark= Omnimark engine
media If this property is not included in the processing instruction, by default, it is set to the "screen" value. This implies that the output is to be displayed in the browser.

The DSSSL engine also recognizes if the output format is specified. For example to transform a SGML/XML document into a RTF document and display it in the browser would require the media property to be set to:

media="screen, rtf"

If the output format is HTML, this property do not have to be included in the stylesheet processing instruction. The HTMLFO output format is the default DSSSL engine output format. The default media is set to screen and corresponds to the browser's window.


Convert the XML document into HTML formatting object

The conversion process consist to take as input an SGML/XML document and to output an HTML document. Thus, the DSSSL script has to associate one or several  HTML element to each SGML/XML elements. A DSSSL style script is a collection of rules defining the association of HTML elements to SGML/XML elements.

The root element:

The root element represents the document. This is the first element in the grove. A grove is the document parsed and translated into an internal model that the computer can process. This is corresponding to the DSSSL root element. In the rule below, we associate an HTML element to the SGML/XML document root element.
DSSSL rule:
( root
   (make html
       (process-children)
   )
)
Resultant HTML elements
<HTML>
    .... HTML elements produced by children's rules....
</HTML>

 The above rule named root creates HTML elements. Within this rule, procedures start with the make keyword. This keyword tells the DSSSL engine to make a formatting object or to make an element. The first HTML element we create is the top element of an HTML document's element hierarchy. The process- children keyword means that all other children elements are to be inserted inside the HTML element.


A child container element:

In the original SGML/XML document, the top level element contains other elements. It is possible to refer to the top level element simultaneously with the root rule and also by its name like in the example below. Rules are executed in the same order as defined in the script document. Because we placed the root rule at the beginning of the script document, this rule is fired first. In the rule below, the body element is associated to the original top level element named <breakfast-menu>.
Original SGML/XML document:

<breakfast-menu>
<food>
<name>Belgian Waffles</name>
<price>$5.95</price>
<description>two of our famous Belgian waffles with plenty of real maple syrup</description>
<calories>650</calories>
</food>
<food>
<name>Strawberry Belgian Waffles</name>
<price>$7.95</price>
<description>light Belgian waffles covered with strawberries and whipped cream</description>
<calories>900</calories>
</food>
<food>
<name>Berry-Berry Belgian Waffles</name>
<price>$8.95</price>
<description>light Belgian waffles covered with an assortment of fresh berries and whipped cream</description>
<calories>900</calories>
</food>
<food>
<name>French Toast</name>
<price>$4.50</price>
<description>thick slices made from our homemade sourdough bread</description>
<calories>600</calories>
</food>
<food>
<name>Homestyle Breakfast</name>
<price>$6.95</price>
<description>two eggs, bacon or sausage, toast, and our ever-popular hash browns</description>
<calories>950</calories>
</food>
</breakfast-menu>
DSSSL rule:
(element breakfast-menu
  (make body
      css-style: "font-family:helvetica,sans sherif;font-size:12pt;background-color:#EEEEEE"
      (process-children)
   )
)
Resultant HTML elements
<HTML>
<BODY style="font-family:helvetica,sans sherif;font-size:12pt;background-color:#EEEEEE">
    .... HTML elements produced by children's rules....
</BODY>
</HTML>

 In this rule, we defined to make a body HTML element with a style property. The style property is defined in the rule as css-style. At first, parenthesis could seem confusing. To know what is part of what, let's decompose each rule's element.

The rule is identified by the element keyword. Thus a rule is identified with the element keyword and the SGML/XML document markup name. the element construct is enclosed by parenthesis as below
(element breakfast-menu )
 The above rule does nothing. Now we have to tell the DSSSL engine to create or make a HTML body element. To do so, we insert the make procedure. like in the example below.
(element breakfast-menu
    (make body)
)
 The HTML element we created has no properties. Make procedures properties are defined as
(make formatting-object-name
     property-name: property-value
 We add indentation to the rule definition to improve the readability. Thus, the make procedure that includes the html element and its properties is like the example below.
(element breakfast-menu
    (make body
       ss-style:"font-family:helvetica,sanssherif;font-size:12pt;background-color:#EEEEEE"
    )
)
 The rule above is not complete until we tell the DSSSL engine to process all the element's children. Where you include the process-children keyword is important. In the example below we include the process-children keyword at the end of the make body procedure. This means that all the element's children will be processed within the body element.
(element breakfast-menu
    (make body
       css-style: "font-family:helvetica,sans herif;font-size:12pt;background-color:#EEEEEE"
(process-children)
    )
)
 Note that the process-children keyword is also a procedure and has to be enclosed by parenthesis. If you use parenthesis convention like above, you'll reduce the risk of errors because it more easy to see if a parenthesis is missing.

A container element with data:

In the previous example, the original document element just contained other elements but do not contain any character data. The following example will show how to process an element having character data.
Original SGML/XML document:

<breakfast-menu>
<food>
<name>Belgian Waffles</name>
<price>$5.95</price>
<description>two of our famous Belgian waffles with plenty of real maple syrup</description>
<calories>650</calories>
</food>
<food>
<name>Strawberry Belgian Waffles</name>
<price>$7.95</price>
<description>light Belgian waffles covered with strawberries and whipped cream</description>
<calories>900</calories>
</food>
<food>
<name>Berry-Berry Belgian Waffles</name>
<price>$8.95</price>
<description>light Belgian waffles covered with an assortment of fresh berries and whipped cream</description>
<calories>900</calories>
</food>
<food>
<name>French Toast</name>
<price>$4.50</price>
<description>thick slices made from our homemade sourdough bread</description>
<calories>600</calories>
</food>
<food>
<name>Homestyle Breakfast</name>
<price>$6.95</price>
<description>two eggs, bacon or sausage, toast, and our ever-popular hash browns</description>
<calories>950</calories>
</food>
</breakfast-menu>
DSSSL rule:
(element name
   (make span
       css-style: "font-weight:bold;color:white"
       (process-children)
   )
)
Resultant HTML elements

<span style="font-weight:bold;color:white">Belgian Waffles</span>


 Each time the <name> tag appears, the associated rule is fired. As showed in the example above, the rule associated to the <name> markup make a span HTML element. This element has a style property. Note that the style property is defined with the css-style keyword. As you probably already noticed, the <name> element doesn't have any children element. So, why use the process-children procedure then?

In DSSSL, everything is transformed into tree's node elements. Markup data is also considered as an other kind of element's node. Thus, the process-children procedure means that all nodes included in the current node are to be processed. In clear terms, this means that the DSSSL engine should process the markup data and all children markups. The data being processed first and then are processed all markup children elements. Thus, the make procedure creates a Span element having a style property and includes the original <name> markup data into the new span element.

More complex aggregates:

Ready for more complex stuff? Don't worry, this is not so complex.

Sometime we may need to have more than one element to be created for a single original document element. In the following example we'll introduce the display-group keyword which does this task quite well.
Original SGML/XML document:

<breakfast-menu>
<food>
<name>Belgian Waffles</name>
<price>$5.95</price>
<description>two of our famous Belgian waffles with plenty of real maple syrup</description>
<calories>650</calories>
</food>
<food>
<name>Strawberry Belgian Waffles</name>
<price>$7.95</price>
<description>light Belgian waffles covered with strawberries and whipped cream</description>
<calories>900</calories>
</food>
<food>
<name>Berry-Berry Belgian Waffles</name>
<price>$8.95</price>
<description>light Belgian waffles covered with an assortment of fresh berries and whipped cream</description>
<calories>900</calories>
</food>
<food>
<name>French Toast</name>
<price>$4.50</price>
<description>thick slices made from our homemade sourdough bread</description>
<calories>600</calories>
</food>
<food>
<name>Homestyle Breakfast</name>
<price>$6.95</price>
<description>two eggs, bacon or sausage, toast, and our ever-popular hash browns</description>
<calories>950</calories>
</food>
</breakfast-menu>
DSSSL rule:
(element food
   (make display-group
      (make div
         css-style: "background-color:teal;color:white;padding:4px"
         (process-matching-children "name")
         (literal " - ")
         (process-matching-children "price")
      )
      (make div
           css-style: "margin-left:20px;margin-bottom:1em;font-size:10pt;"
           (process-matching-children "description")
           (process-matching-children "calories" )
       )
   )
)
Resultant HTML elements
<div style="background-color:teal;color:white;padding:4px">
<spanstyle="font-weight:bold;color:white">Belgian Waffles</span>
- $5.95
</div>
<div style="margin-left:20px;margin-bottom:1em;font-size:10pt;">
two of our famous Belgian waffles with plenty of real maple syrup
<span style="font-style:italic"> 650 calories per serving</span>
</div>

 As you noticed in the example above, the rule creates two aggregated DIV HTML elements. First the rule makes a display-group object. This object has no equivalent in the HTML world. This object has the role to aggregate other objects like in this case, DIV elements.

The display-group element may aggregate any number of elements.
(make display-group
   (make something)
    (make something)
    (make something)
)
 Inside the display-group, we make two DIV elements with a style property.
(element food
   (make display-group
       (make div
           css-style: "background-color:teal;color:white;padding:4px"
           (process-matching-children "name")
           (literal " - ")
           (process-matching-children "price")
       )
       (make div
          css-style: "margin-left:20px;margin-bottom:1em;font-size:10pt;"
          (process-matching-children "description")
          (process-matching-children "calories")
        )
    )
)
Resultant HTML elements
<div style="background-color:teal;color:white;padding:4px">
<spanstyle="font-weight:bold;color:white">Belgian Waffles</span>
- $5.95
</div>
<div style="margin-left:20px;margin-bottom:1em;font-size:10pt;">
two of our famous Belgian waffles with plenty of real maple syrup
<span style="font-style:italic"> 650 calories per serving</span>
</div>

 We introduced to the rule a new construct process-matching-children. What is the difference between the (process-children) procedure and the (process-matching-children) procedure? The former process all original document element children and the element data. the latter process only children having their name matched. For instance, in the first div make procedure, only the "name" and "price" elements are matched and processed. In the second div make procedure, only the "description" and "calories" elements are processed.
Original SGML/XML document:

<food>
<name>Belgian Waffles</name>
<price>$5.95</price>
<description>two of our famous Belgian waffles with plenty of real maple syrup</description>
<calories>650</calories>
</food>
<food>
DSSSL rule:
(element food
   (make display-group
       (make div
           css-style: "background-color:teal;color:white;padding:4px"
           (process-matching-children "name")
           (literal " - ")
           (process-matching-children "price")
       )
      (make div
            css-style: "margin-left:20px;margin-bottom:1em;font-size:10pt;"
            (process-matching-children "description")
            (process-matching-children "calories")
        )
    )
)
 The first make procedure also contains a literal construct. A literal construct is a string. In the example above we include a " - " between the processed "name" element and the processed "price" element.
<div style="background-color:teal;color:white;padding:4px">
<spanstyle="font-weight:bold;color:white">Belgian Waffles</span>
- $5.95
</div>
 The first DIV procedure process the name element. Because there is a name rule in the DSSSL script, this rule is fired and this latter creates HTML elements as in the example below.
Original SGML/XML document:

<food>
<name>Belgian Waffles</name>
<price>$5.95</price>
<description>two of our famous Belgian waffles with plenty of real maple syrup</description>
<calories>650</calories>
</food>
DSSSL rules:
(element food
   (make display-group
       (make div
           css-style: "background-color:teal;color:white;padding:4px"
           (process-matching-children "name")
           (literal " - ")
           (process-matching-children "price")
       )
       (make div
           css-style: "margin-left:20px;margin-bottom:1em;font-size:10pt;"
           (process-matching-children "description")
           (process-matching-children "calories")
        )
    )
)

(element name
   (make span
       css-style: "font-weight:bold;color:white"
       (process-children)
   )
)
Resultant HTML elements
<div style="background-color:teal;color:white;padding:4px">
<span style="font-weight:bold;color:white">Belgian Waffles</span>
- $5.95
</div>



Inline insertion:

Sometime we just want to insert the content without any special HTML element. In our example, the "price" markup is one of these cases. We saw that in the food rule we make two DIV elements. The first DIV contains the result of the "name" and the "price" markup processing. Both results are separated with a " - " literal. The rule below, just inserts the markup content in the resultant output.
Original SGML/XML document:
<food>
<name>Belgian Waffles</name>
<price>$5.95</price>
<description>two of our famous Belgian waffles with plenty of real maple syrup</description>
<calories>650</calories>
</food>
DSSSL rule:
(element price
      (process-children)
)
Resultant HTML elements
<div style="background-color:teal;color:white;padding:4px">
<spanstyle="font-weight:bold;color:white">Belgian Waffles</span>
- $5.95
</div>





An other way to create inline insertion with style properties:

If the inline inserted content should have different rendition properties, HTML has provisions for such behavior with the SPAN element. CSS style properties could then be particularly useful to define particular style for a content fragment.

The original XML document just contains calories quantity. We want the result to be displayed in italic and with the appended text "calories per serving". The example below show how.
Original SGML/XML document:

<food>
<name>Belgian Waffles</name>
<price>$5.95</price>
<description>two of our famous Belgian waffles with plenty of real maple syrup</description>
<calories>650</calories>
</food>
DSSSL rule:
(element calories
     (make span
       css-style: "font-style:italic"
       (literal " ")
       (process-children)
        (literal " calories per serving")
     )
)
Resultant HTML elements
<span style="font-style:italic"> 900 calories per serving</span>
 The rule makes a SPAN element with a CSS style property. Then the resultant HTML element contains a " " literal, the calories data content and finally the "calories per serving" literal. Remember that a literal is simply a string. The resultant output will be a italicized text with a string appended to the calories quantity.

The complete DSSSL script

A DSSSL script is an SGML document. To use the HTMLFO DSSSL library some SGML elements should be included in your script.
  • With the SGML/XML Kit, the Doctype should be set to style-sheet PUBLIC "-//Netfolder//DTD DSSSL library//EN"
  • The style-specification element should specify that the script uses the htmlfo library.
  • The document should ends with a external-specification declaration set to the htmlfo library.
The example below shows in bold the mandatory script document declarations.
<!DOCTYPE style-sheet PUBLIC "-//Netfolder//DTD DSSSL library//EN" >
<style-specification use="htmlfo">
(root
   (make html
       (process-children)
   )
)

(element breakfast-menu
    (make body
        css-style: "font-family:helvetica,sans sherif;font-size:12pt;background-color:#EEEEEE"
        (process-children)
    )
)

(element food
    (make display-group
        (make div
               css-style: "background-color:teal;color:white;padding:4px"
               (process-matching-children "name")
               (literal " - ")
               (process-matching-children "price")
       )
       ( make div
               css-style: "margin-left:20px;margin-bottom:1em;font-size:10pt;"
                (process-matching-children "description")
                (process-matching-children "calories")
       )
   )
)

(element name
    (make span
          css-style: "font-weight:bold;color:white"
    )
)

(element price
      (process-children)
)

(element description
     (process-children)
)

(element calories
    (make span
          css-style: "font-style:italic"
           (literal " ")
          (process-children
           (literal " calories per serving")
    )
)
</style-specification>
<external-specification id="htmlfo" document="htmlfo">
 The SGML/XML Kit already has the library entity declaration included in the DSSSL DTD. But, if you do not have the SGML/XML kit installed and use instead Jade as standalone tool. The HTMLFo library should be declared first like in the example below.

<!DOCTYPE style-sheet PUBLIC "-//James Clark//DTD DSSSL Style Sheet//EN" [
<!ENTITY htmlfo SYSTEM "../scripts/htmlfo.dsl" CDATA DSSSL>
]>
<style-specification use="htmlfo">
......... DSSSL script
</style-specification>
<external-specification id="htmlfo" document="htmlfo"




The result displayed in the IE 5 browser



All trademarks herein are the property of their respective owners.
Copyright ©  1999-2003 Didier PH Martin, All rights reserved. Created by Didier PH Martin, modified: April 7, 2003
